Well Entrance Velocity – An Often Overlooked Well Performance Factor

On the face of it, it would seem that bringing as much water as possible into a well as fast as possible would be a good thing, however that does not hold true in well design.  Recommendations for maximum well entrance velocity range from 0.1 ft/sec (Driscoll, 1986) to 1.5 ft/sec (AWWA, 2015).  At high entrance velocity rates, there is high friction loss and turbulent flow develops at the well screen which causes an increased potential for mineral incrustations and corrosion.  Turbulent flow also reduces pump efficiency and results in lower overall well efficiency due to head losses at the screen.  In reality, entrance velocity is a balancing act between screen length, well diameter, screen open area and aquifer thicknesses and empirical evidence indicates that efficiencies do not increase significantly above a well screen percentage open area of 3-5% (Roscoe Moss Company, 1990).

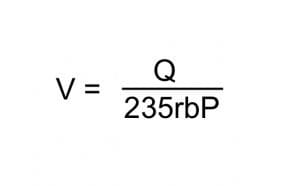

Average entrance velocity is calculated by taking the well yield divided by total area of the screen openings as follows:

V = screen entrance velocity (ft/sec)

Q = well discharge (gpm)

r = radius of well screen (in)

b = length of well screen (ft)

P = percentage open area of the screen

The screen open areas per foot vary by screen type and diameter and can be provided by the screen manufacturer.

In non-homogenous aquifers, some of the more permeable zones may transmit water into the well at higher velocities than the calculated entrance velocity, whereas finer grained zones may transmit water to the well at lower than the calculated entrance velocity.  It is not practical to design a well to account for these variations and empirical evidence indicates that these differences are not appreciable if the well screen is designed to the average entrance velocity not 0.1 ft/sec.

References:

American Water Works Association, 2015, Water Wells, AWWA Standard A100-15

Campbell, M.D. and Lehr, J.H., 1973, Water Well Technology, McGraw Hill Book Company

Driscoll, F.G., 1986, Groundwater and Wells, Second Edition, Johnson Screens

Roscoe Moss Company, 1990, Handbook of Groundwater Development, John Wiley & Sons, Inc.

Thomas Ballard

Thomas E. Ballard, aka “The Groundwater Guy” is a consulting hydrogeologist with over 35 years experience. He is a registered Professional Geologist in California and Tennessee and Certified Hydrogeologist in California. His work focuses mainly on water resources development for small water districts and groundwater contamination issues.
