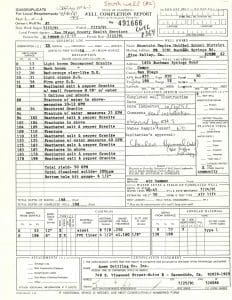

A Good Driller’s Log Can Be One of Your Best Diagnostic Tools

One of my first stopping points when I am trying to figure out what ails a well is the driller’s log. There can be a lot of clues there as to potential problems in the well and it is certainly a lot cheaper to review a driller’s log than it is to jump into a bunch of expensive diagnostic tools.

In the past, we always used to think that many driller’s logs were completed in the bar after about three or four beers, but they have gotten a lot better over the years, for which I am thankful.  In the many cases where the driller may not be around anymore, the information contained on the driller’s log may be the sole record of what happened during well drilling and construction.

While the well construction details can be extremely useful, we have tracked down a lot of problems over the years just based on a few notes the driller has put on the log in addition to the required well construction information.  In one case, we were able to identify issues that were causing E. coli hits in several wells in a well field on the basis of notes on one well log that noted lost circulation zones at approximately the depth of the bottom of the seal, which resulted in a conduit along a surface fracture zone that resulted in surface water intrusion into the well.  Since this well was located in an area surrounded by septic systems, shallow groundwater impacted by E. coli was finding its way into the wells via the fractures.  Ultimately, the answer was to drill new wells with deeper seals.  Without those notes on that one driller’s log, we would have been challenged to find the cause of the problem without an expensive investigation.

We typically also like to review the daily reports if they are available, since they can provide additional clues to drilling conditions and other issues that can affect well performance.  When locating additional wells in an area, both the driller’s logs and daily reports really provide valuable information on drilling conditions to be expected that can affect both the budget and time frame for the project, as well as the driller’s bid.  Full disclosure of known drilling conditions is vital to minimizing change orders on a job and getting it completed on time.

Sometimes we take driller’s logs for granted, but we should never underestimate their value as an initial diagnostic tool for evaluating a well.

Thomas Ballard

Thomas E. Ballard, aka “The Groundwater Guy” is a consulting hydrogeologist with over 35 years experience. He is a registered Professional Geologist in California and Tennessee and Certified Hydrogeologist in California. His work focuses mainly on water resources development for small water districts and groundwater contamination issues.

This Post Has 2 Comments

  1. Darlyne

    Where does one go to find a driller’s log if not left for the new purchaser of a house in TN?

    1. Thomas Ballard

      You can contact the Division of Water Resources at the Tennessee Department of Environment and Conservation in Nashville. If a well log exists (which is not always a guarantee), they should have a copy of it.
